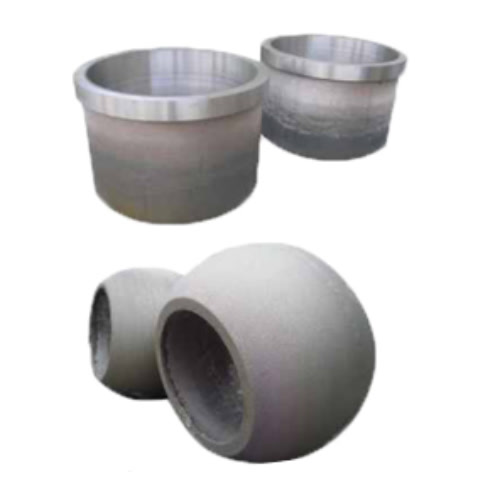

Vertical Centrifugal Casting Machine designed to produce conical tube castings of Ferrous or Non- Ferrous Material.The machine is capable of rotating both Permanent Steel moulds.within the following capacity of mould and casting range sizes for the production ball casting, rings, flanges etc.
Typical examples of products made using true centrifugal castings are soil pipe,reformer tubes, pressure pipe, cylinders, sleeves, bushings, etc. These castings are generally strictly tubular in shape. True centrifugal casting is a method in which a mould spins about the horizontal or vertical axis and the shape of the mould determines the outside shape of the casting. The inside is determined by the free surface of the liquid metal during solidi
MIN | MAX | |
---|---|---|
CASTING LENGT | 100mm | 600mm |
CASTING OUTSIDE DIAMETER | 100mm | 500mm |
The primary advantage of the centrifugal casting process is its increase in yield over static casting or gravity casting. Most Casting that can be made using the centrifugal process doesn't need gates and risers, which results in better material utilization or yield. Eliminating gates and risers also reduces cleaning time. Using permanent moulds to centrifugally cast a part considerably reduces moulding time, core making and setting time. These permanent steel moulds can be used over and over again and can have a very long life.Higher yields have a side benefit of incresing foundary furnace capacity without adding furnaces.Also,because less metal is being poured to make a casting,associated melt operating costs are reduced.
